| Breaking Capacity 分斷能力 | Material 材料 | Operating Temperature 工作溫度 | Soldering conditions 焊接條件 |

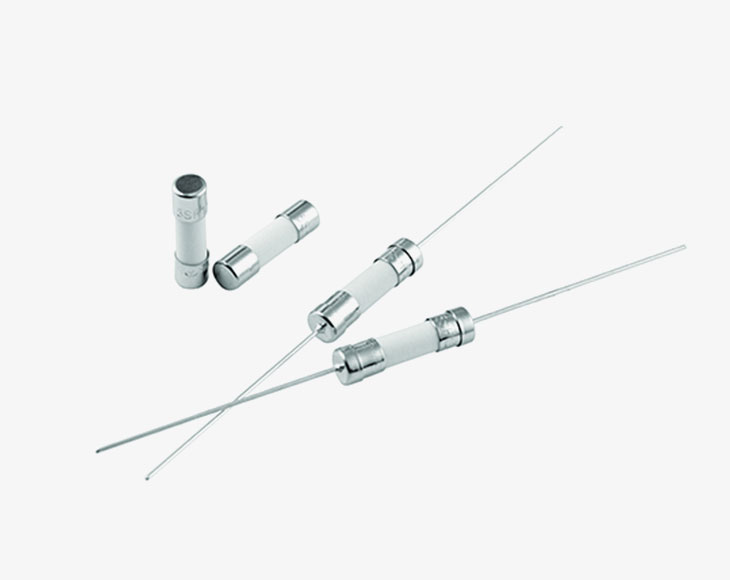

| 10000A at 125V AC (1A-12A) 35A at 250V AC (0-1A) 100A at 250V AC (1.1A-3.5A) 200A at 250V AC (3.6A-12A) | Fuse body -ceramic tube End cap--nickel plated brass Pigtail--tin plated copper on nickel plated brass cap | -40℃～+125℃ | Wave solder:260℃,≤5S Hand solder: 360℃,≤1S |
尺寸圖(單位:mm)
Functional Characteristics 電氣特性
| Testing current 測試電流 | Blow Time 熔斷時間 | |
| Min最小 | Max最大 | |
| 100% | 4 hours | - |
| 135% | - | 1 hour |
| 200% | 200ms | 120s |
Approvals認證（○ Pending表示認證中 ● Approvals表示已獲認證）
| Current Rating 額定電流 | Voltage Rating 額定電壓 | Norminal Melting I2T(A2sec) | Approvals 認證 | |
 |  | |||
| 1A | 125V/250V | 1.8 | ● | |
| 2A | 125V/250V | 7.8 | ● | |
| 2.5A | 125V/250V | 11.5 | ● | |
| 3A | 125V/250V | 17 | ● | |
| 3.5A | 125V/250V | 18 | ● | |
| 4A | 125V/250V | 27 | ● | |
| 5A | 125V/250V | 43 | ● | |
| 6A | 125V/250V | 62 | ● | |
| 8A | 125V/250V | 110 | ● | |
| 10A | 125V/250V | 128 | ● | |
| 12A | 125V/250V | 138 | ● | |
| 15A | 125V/250V | 210 | ● | |
